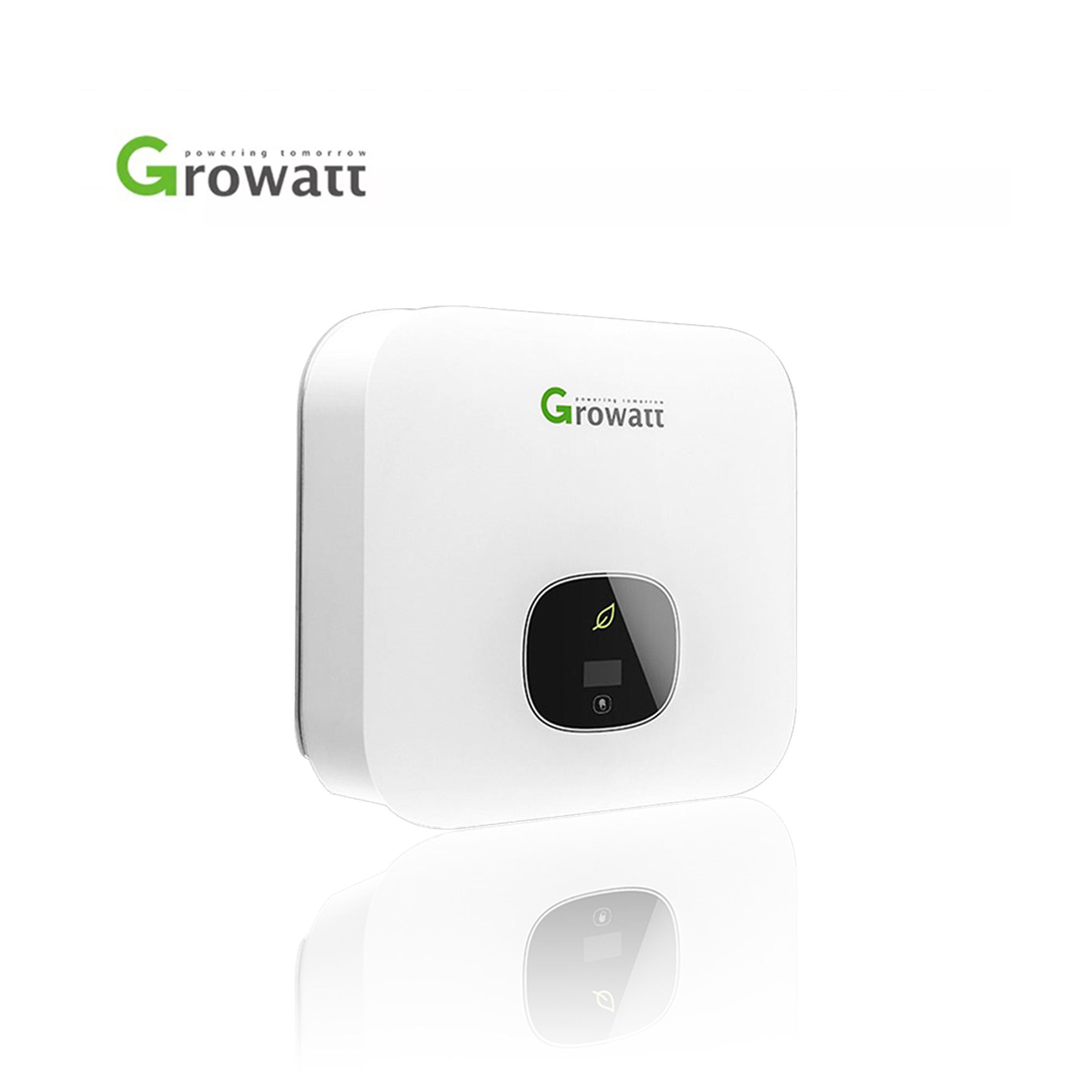

Growatt MIN 6000TL-X

Growatt

by Growatt

6kW

Nominal AC output power

98.4% Efficiency

Maximum efficiency

2 MPPT

Number of MPP trackers

Single Phase

Phase

Get current pricing

Priced to your system size and installation — send your details and we'll reply with a quote, usually the same day.

Get a Price

Overview

The Growatt MIN 6000TL-X is a compact single-phase grid-tied inverter for residential solar installations.

It delivers 6,000W of nominal AC output at up to 98.4% maximum efficiency, with two independent MPPT trackers allowing panels on different roof orientations to operate independently for better yield.

The unit uses a transformerless topology with Type II surge protection on the DC side, a touch-key OLED display, and supports export limitation for systems where feeding back to the grid is restricted. Optional WiFi, 4G, or LAN dongles enable remote monitoring through Growatt's ShinePhone platform.

Key Features

Dual independent MPPT trackers
Up to 98.4% maximum efficiency
Touch-key control with OLED display
Type II surge protection, DC side
Export limitation support
Optional WiFi / 4G / LAN monitoring
Data storage up to 25 years
Transformerless design

Specifications

The Growatt MIN 6000TL-X is a 6kW single-phase on-grid solar inverter with dual MPPT trackers and up to 98.4% efficiency. Designed for residential rooftop systems, it supports export limitation and optional WiFi monitoring.

Nominal AC output power: 6,000W
Maximum efficiency: 98.4%
Number of MPP trackers: 2
Phase: Single-phase
Maximum DC input voltage: 500V
Start voltage: 100V
MPPT operating voltage range: 80V–500V
Nominal DC voltage: 360V
Grid frequency: 50/60Hz
Topology: Transformerless
Max. recommended PV power (for module STC): 8100W
Max. DC voltage: 550V
Nominal voltage: 360V
MPP voltage range: 80V-550V
No. of MPP trackers: 2
No. of PV strings per MPP tracker: 1
Max. input current per MPP tracker: 13.5A
Max. short-circuit current per MPP tracker: 16.9A
AC nominal power: 6000W
Max. AC apparent power: 6000VA
Nominal AC voltage (range): 230V (180-280V)
AC grid frequency (range): 50/60 Hz (45-55Hz/55-65 Hz)
Max. output current: 27.2A
Adjustable power factor: 0.8 leading…0.8 lagging
THDi: <3%
Max. efficiency: 98.4%
European efficiency: 97.5%
MPPT efficiency: 99.9%
AC grid connection type: Single phase
DC reverse polarity protection: Yes
DC switch: Yes
AC/DC surge protection: Type III/Type II
Insulation resistance monitoring: Yes
Ground fault monitoring: Yes
Grid monitoring: Yes
Anti-islanding protection: Yes
Residual-current monitoring unit: Yes
AFCI protection: Optional
AC short-circuit protection: Yes
Dimensions (W / H / D): 375/350/160mm
Weight: 10.8kg
Operating temperature range: -25°C ... +60°C
Noise emission (typical): ≤35 dB(A)
Nighttime power consumption: <1W
Cooling: Natural convection
Protection degree: IP65
Relative humidity: 0-100%
Altitude: 4000m
DC connection: H4/MC4(Optional)
AC connection: Connector
Display: OLED+LED/WIFI+APP
Interfaces: RS485/USB/WiFi/GPRS/RF/LAN: Yes/Yes/Optional/Optional/Optional/Optional
Warranty: 5 years / 10 years
Certifications: CE, IEC62109, VDE0126-1-1, AS4777, VDE-AR-N4105, CQC, IEC61683, IEC60068, IEC611727, IEC62116, INMETRO, AS/NZS 4777.2,UKCA, G99G98, IEEE 1547,PO12.2, UNE206007, UNE217001, NTS Type A
Model: MIN 6000TL-X
Max. recommended PV power (STC): 8100W
MPP voltage range at Full Power: 235V-500V
Number of PV strings per MPP tracker: 1
DC overvoltage category: Category II
Nominal AC voltage/range: 240V / 160-300V
AC grid frequency/range: 50Hz/45-55Hz
Inrush current: <10A
Max output fault current: 53A
Max output overload protection: 32A
Backfeed current: 0A
Power factor (@nominal power): >0.99
AC overvoltage category: Category III
Euro-eta: 97.5%
DC reverse-polarity protection: Integrated
DC Surge protection: Type III
AC surge protection: Type III
Dimensions (W x H x D): 375 x 350 x 160 mm
Internal consumption at night: <1W
RS485/USB: Integrated
WIFI/GPRS/4G/LAN/RF: Optional
